Kennametal

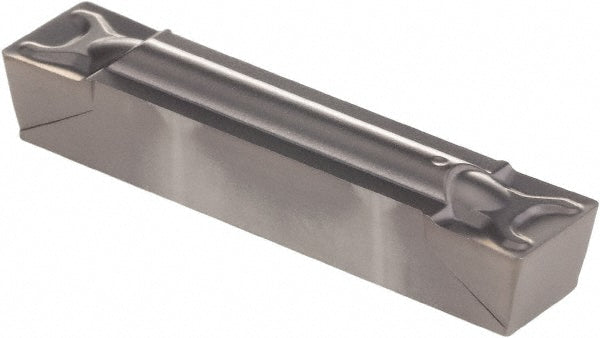

Solid Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114339
MFR# 4114339Cat# A4G250I06P1GMNSeries A4
$47.95List $58.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4114339 is a solid carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting height0.2250
Cutting width0.2500
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialSolid Carbide
Insert seat size6
Insert size250
Insert styleG
Manufacturers catalog numberA4G250I06P1GMN
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1870
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length1.1810
Single or double endDouble
