Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114348
MFR# 4114348Cat# A4R0405M04U00GMNSeries A4
$35.95List $43.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

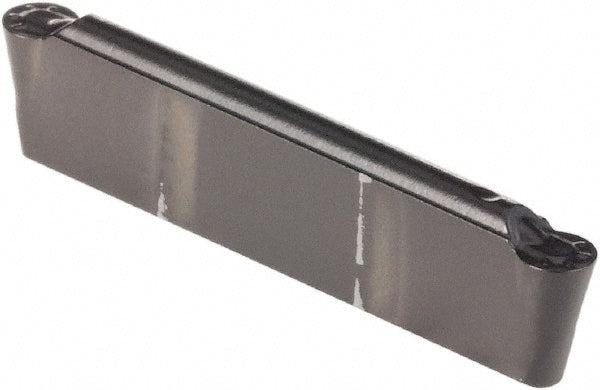

The Kennametal 4114348 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0797
Cutting width0.1594
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size0405
Insert styleA4
Lead angle0
Manufacturers catalog numberA4R0405M04U00GMN
Manufacturer gradeKCU25
Maximum depth of cut0.1339
Maximum depth of cut range0.1000 to 0.1500
Measurement typeDecimal Inch
Multi use toolYes
