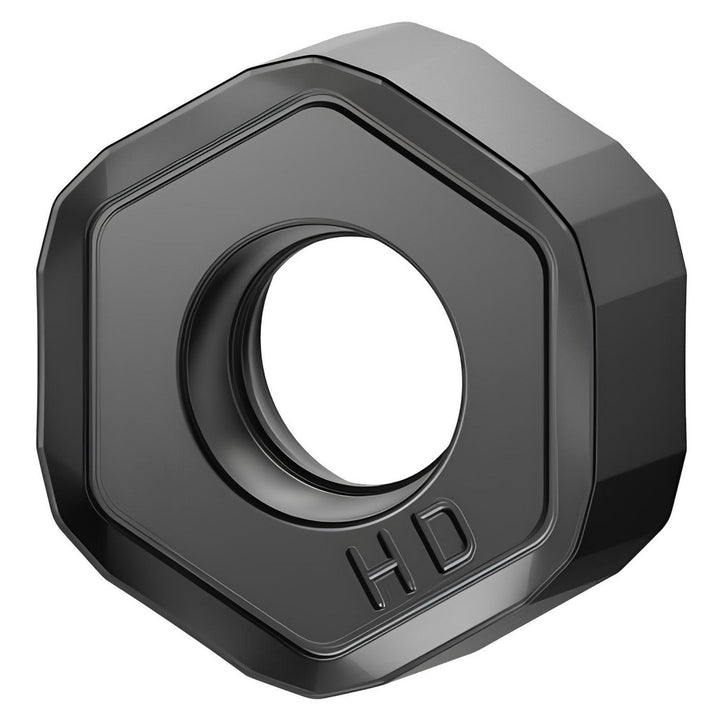

HNPJ0604ANSNHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 4119228
MFR# 4119228ISO/ANSI# HNPJ0604ANSNHDCat# HNPJ0604ANSNHDSeries HNPJ
$28.49List $34.77
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 4119228 is a HNPJ0604ANSNHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeHNPJ43ANSNHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned T-Land
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANSNHD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANSNHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2536
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1731
Thickness range0.1500 to 0.1750
Width0.4724
