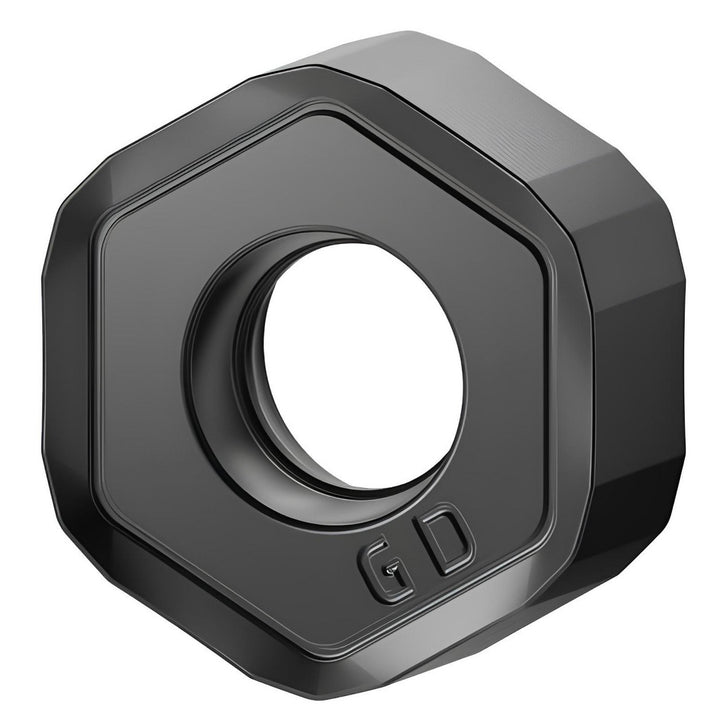

HNPJ0604ANSNGD Solid Carbide Insert, Grade KCK15, TiN - Kennametal 4119699

Kennametal

HNPJ0604ANSNGD Solid Carbide Insert, Grade KCK15, TiN - Kennametal 4119699

MFR# 4119699ISO/ANSI# HNPJ0604ANSNGDCat# HNPJ0604ANSNGDSeries HNPJ

$28.49List $34.77 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeHexagon
GradeKCK15
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 4119699 is a HNPJ0604ANSNGD solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.

Specifications

Ansi codeHNPJ43ANSNGD
Chip breakerGD
Coating finishTiN
Coating processMTCVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANSNGD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANSNGD
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Multi use toolYes
Number of cutting edges12
Primary workpiece materialCast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1750
Thickness range0.1750 to 0.1850
Width0.4724
