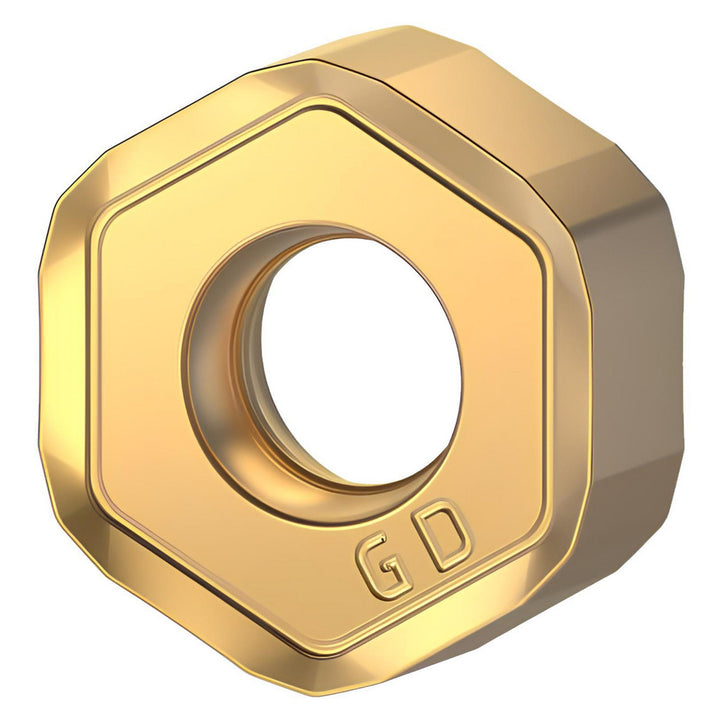

HNPJ0604ANSNGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 4119701
MFR# 4119701ISO/ANSI# HNPJ0604ANSNGDCat# HNPJ0604ANSNGDSeries HNPJ
$26.57List $32.43
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 4119701 is a HNPJ0604ANSNGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ43ANSNGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned T-Land
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANSNGD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANSNGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.4331
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1750
Thickness range0.1750 to 0.1850
Width0.4724
