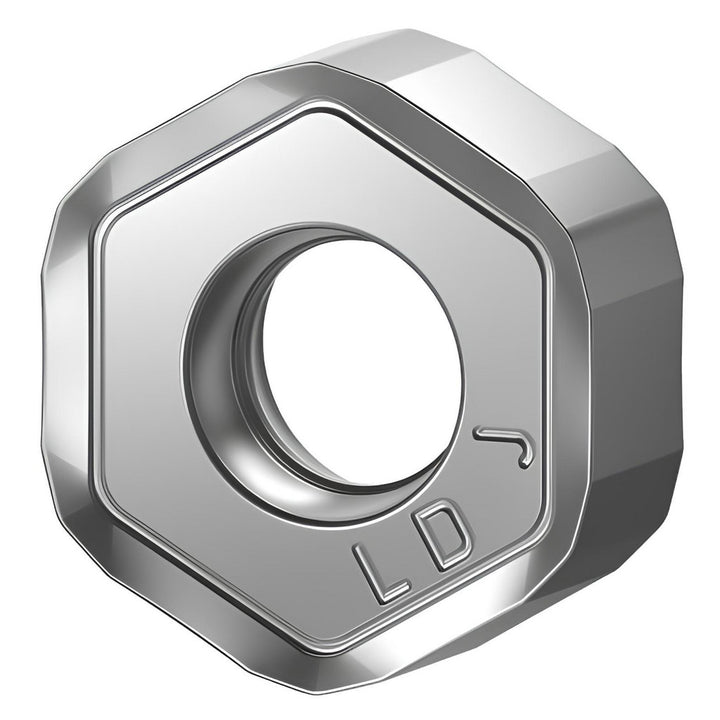

HNGJ0604ANFNLDJ Solid Carbide Insert, Grade K313 - Kennametal 4121574
MFR# 4121574ISO/ANSI# HNGJ0604ANFNLDJCat# HNGJ0604ANFNLDJSeries HNGJ
$35.53List $43.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeK313
MaterialSolid Carbide
Description
The Kennametal 4121574 is a HNGJ0604ANFNLDJ solid carbide indexable insert, grade K313. Suited for cast iron, non-ferrous metal.
Specifications
Ansi codeHNGJ43ANFNLDJ
Chip breakerLDJ
Coating processUncoated
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleSharp
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNGJ
Iso codeHNGJ0604ANFNLDJ
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNGJ0604ANFNLDJ
Manufacturer gradeK313
Material applicationCast Iron; Non-Ferrous Metal
Multi use toolYes
Number of cutting edges12
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1764
Thickness range0.1750 to 0.1850
Width0.4724
