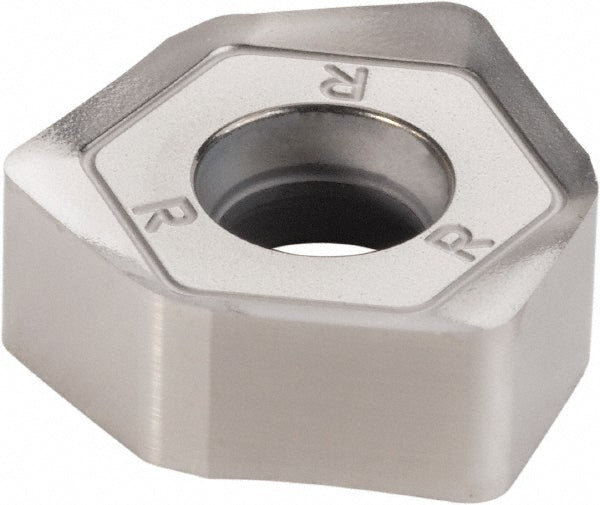

XNGJ0604ANFNLDJ3W Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 4121604

Kennametal

XNGJ0604ANFNLDJ3W Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 4121604

MFR# 4121604ISO/ANSI# XNGJ0604ANFNLDJ3WCat# XNGJ0604ANFNLDJ3WSeries XNGJ

$46.93List $57.28 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 4121604 is a XNGJ0604ANFNLDJ3W solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeXNGJ43ANFNLDJ3W
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/16
Cutter series compatibilityDodeka
Cutting edge styleWiper
Hole diameter0.1969
Included angle degree80
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size4
Insert size code43
Insert styleXNGJ
Iso codeXNGJ0604ANFNLDJ3W
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberXNGJ0604ANFNLDJ3W
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Maximum depth of cut0.2537
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1777
Thickness range0.1750 to 0.1850
Width0.4724
