Kennametal

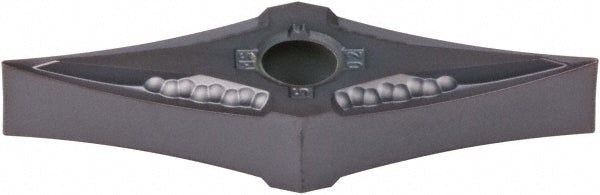

VNMG160408MS Carbide Insert, Grade KCU25, AlTiN - Kennametal 4121715
MFR# 4121715ISO/ANSI# VNMG332MSSeries KENLOC
$31.29List $38.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4121715 is a VNMG160408MS carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerMS
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332MS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408MS
Length range0.7000 - 10.0000
Manufacturers catalog number4121715
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
