Kennametal

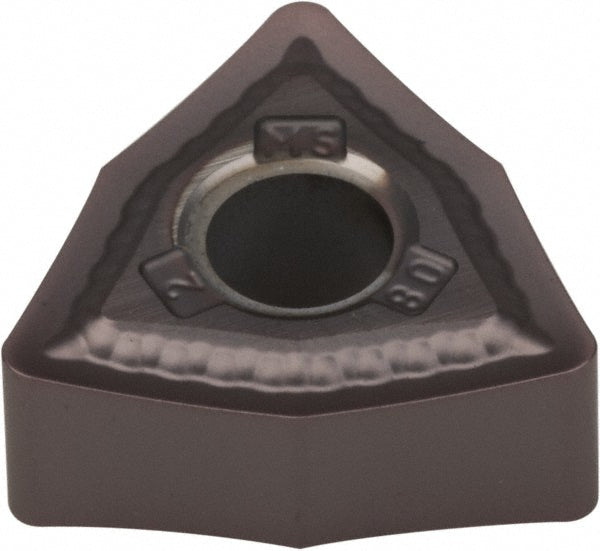

WNMG080408MS Carbide Insert, Grade KCU25, AlTiN - Kennametal 4121724
MFR# 4121724ISO/ANSI# WNMG432MSSeries KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4121724 is a WNMG080408MS carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerMS
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG432MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408MS
Length range0.6500 - 0.7000
Manufacturers catalog number4121724
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
