Kennametal

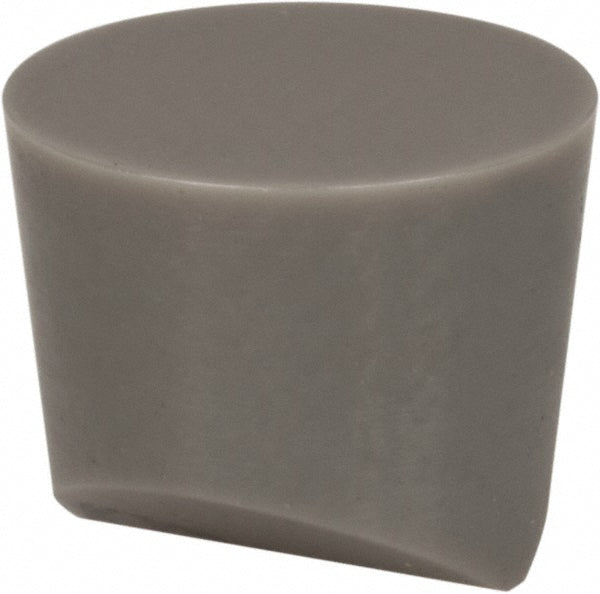

RPGX090700E Ceramic Insert, Grade KYS25, Al2O3 - Kennametal 4129400
MFR# 4129400ISO/ANSI# RPGV090700Series KENDEX
$34.05List $40.82
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeKYS25
MaterialCeramic
CoatingAl2O3
Description
The Kennametal 4129400 is a RPGX090700E ceramic indexable insert, grade KYS25, Al2O3 coated. Suited for superalloys & titanium.
Specifications
Ansi insert codeRPGV35
Ansi size code35
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRPGV35E
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCeramic
Insert shapeR - Round
Insert size code35
Insert styleRPGV
Insert thickness in5/16
Iso codeRPGX090700E
Iso insert codeRPGV090700
Iso size code090700
Length range0.3000 - 0.4000
Manufacturers catalog number4129400
Manufacturer gradeKYS25
Material gradeSiAlON
Maximum depth of cut0.1249
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
