Kennametal

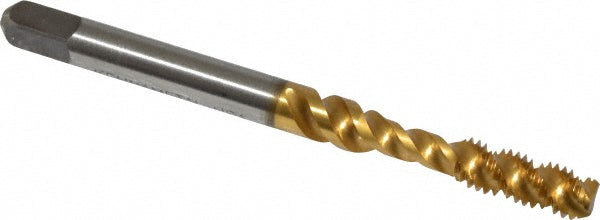

#10-32 UNF Cobalt Tap, Straw - Kennametal 4130394
MFR# 4130394
$31.38List $40.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingStraw
Description
The Kennametal 4130394 is a #10-32 UNF Cobalt tap with a Straw finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishStraw
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle52
MaterialCobalt
Material applicationAluminum; Cast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Neck length in3/8
Number of flutes3
Overall length2.3800
OversizeNo
Shank diameter0.1940
Thread directionRight Hand
Thread length0.5000
Thread limitH3
Thread size in#10-32
Thread standardUNF
