Kennametal

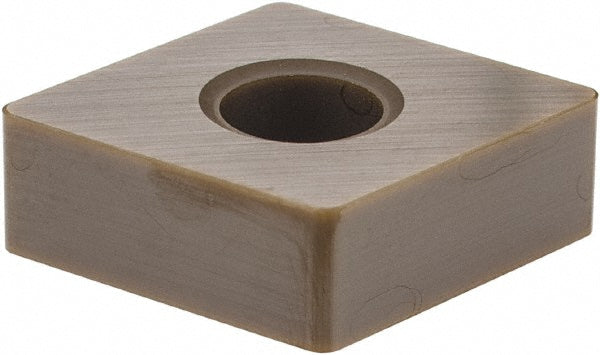

CNGA120408T01020 Ceramic Insert, Grade KYS30 - Kennametal 4146402
MFR# 4146402ISO/ANSI# CNGA120408Series KENLOC
$34.80List $41.73
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKYS30
MaterialCeramic
Description
The Kennametal 4146402 is a CNGA120408T01020 ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408T01020
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number4146402
Manufacturer gradeKYS30
Material gradeSiAlON
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
