Kennametal

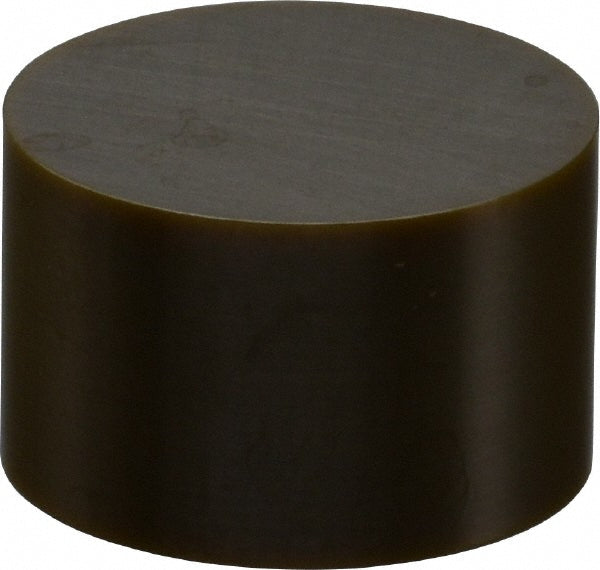

RNGN120700E Ceramic Insert, Grade KYS30 - Kennametal 4146441
MFR# 4146441ISO/ANSI# RNG120700Series KENDEX
$26.93List $32.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKYS30
MaterialCeramic
Description
The Kennametal 4146441 is a RNGN120700E ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi insert codeRNG45
Ansi size code45
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRNG45E
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso codeRNGN120700E
Iso insert codeRNG120700
Iso size code120700
Length range0.5000 - 0.6000
Manufacturers catalog number4146441
Manufacturer gradeKYS30
Material gradeSiAlON
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
