Kennametal

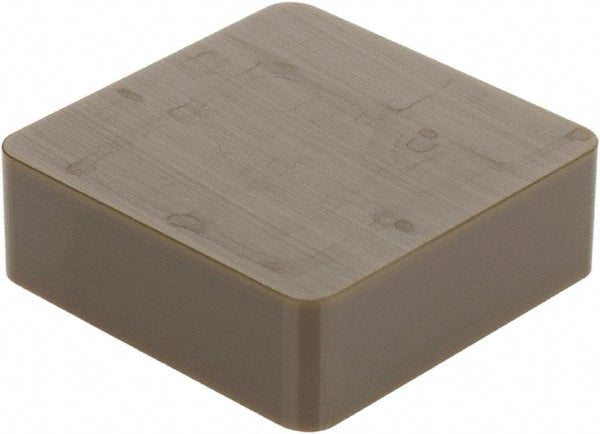

SNGN190616T01020 Ceramic Insert, Grade KYS30 - Kennametal 4146453
MFR# 4146453ISO/ANSI# SNG190616Series KENDEX
$39.23List $47.05
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeS - Square
GradeKYS30
MaterialCeramic
Description
The Kennametal 4146453 is a SNGN190616T01020 ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi insert codeSNG644
Ansi size code644
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Included angle90
Industry standard numberSNG644T0420
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp
Insert length in3/4
Insert materialCeramic
Insert shapeS - Square
Insert size code644
Insert styleSNG
Insert thickness in1/4
Iso codeSNGN190616T01020
Iso insert codeSNG190616
Iso size code190616
Length range0.7000 - 10.0000
Manufacturers catalog number4146453
Manufacturer gradeKYS30
Material gradeSiAlON
Maximum depth of cut0.2498
Maximum depth of cut frac in1/4
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/4
Wiper edgeNo
