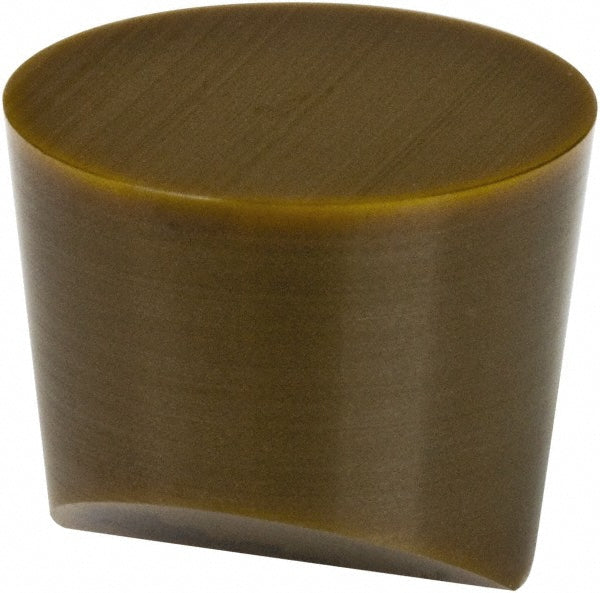

RCGX120700T01020 Ceramic Insert, Grade KYS30 - Kennametal 4146474
MFR# 4146474ISO/ANSI# RCGV120700Series KENDEX
$34.91List $41.86
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKYS30
MaterialCeramic
Description
The Kennametal 4146474 is a RCGX120700T01020 ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi insert codeRCGV45
Ansi size code45
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating processUncoated
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRCGV45T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code45
Insert styleRCGV
Insert thickness in5/16
Iso codeRCGX120700T01020
Iso insert codeRCGV120700
Iso size code120700
Length range0.5000 - 0.6000
Manufacturers catalog number4146474
Manufacturer gradeKYS30
Material gradeSiAlON
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
