Kennametal

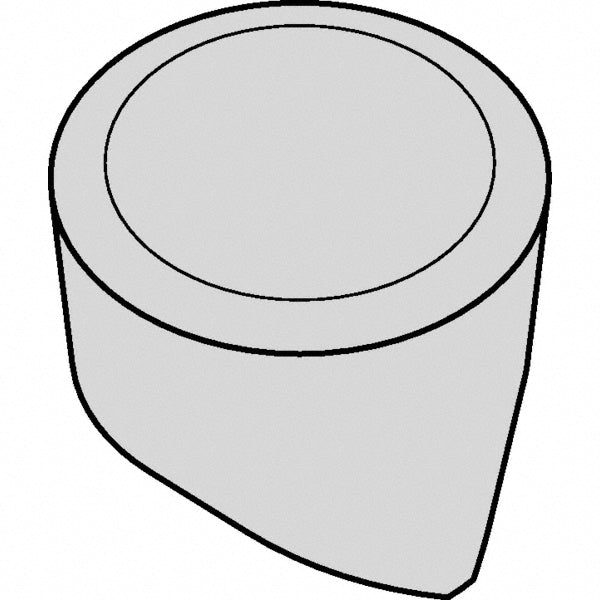

RPGX090700T01020 Ceramic Insert, Grade KYS30 - Kennametal 4146476
MFR# 4146476ISO/ANSI# RPGV090700Series KENDEX
$30.52List $37.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeKYS30
MaterialCeramic
Description
The Kennametal 4146476 is a RPGX090700T01020 ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi insert codeRPGV35
Ansi size code35
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating processUncoated
Corner radius in3/16
Cutting edge styleT-Land
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRPGV35T0420
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCeramic
Insert shapeR - Round
Insert size code35
Insert styleRPGV
Insert thickness in5/16
Iso codeRPGX090700T01020
Iso insert codeRPGV090700
Iso size code090700
Length range0.3000 - 0.4000
Manufacturers catalog number4146476
Manufacturer gradeKYS30
Material gradeSiAlON
Maximum depth of cut0.1249
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
