Kennametal

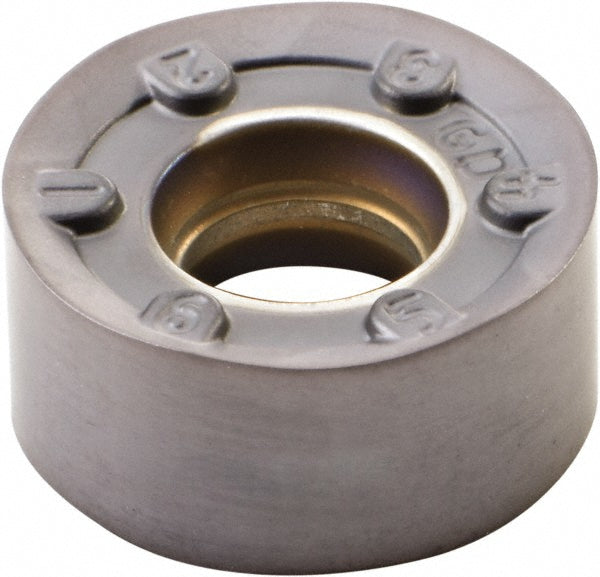

RNGJ1204M0SGD Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 4146587
MFR# 4146587ISO/ANSI# RNGJ1204M0SGDCat# RNGJ1204M0SGDSeries RNGJ
$36.06List $44.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4146587 is a RNGJ1204M0SGD solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeRNGJ1204M0SGD
Chip breakerGD
Coating finishAlTiN
Coating processPVD
Cutter series compatibilityRodeka-12
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRNGJ
Iso codeRNGJ1204M0SGD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRNGJ1204M0SGD
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4724
