Kennametal
0.2441" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4149643
MFR# 4149643Series B053A-CPG
$213.10List $273.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description

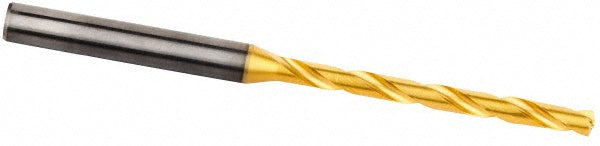

The Kennametal 4149643 is a 0.2441" Solid Carbide drill bit with a TiAlN finish, 140° point. Series B053A-CPG.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.015 to 0.000 mm
Drill bit size0.2441
Drill point angle degrees140
Drill point length0.0409
Flute length2.6378
Flute length x diameter ratio8xD
Flute typeSpiral
Maximum drilling depth2.2441
Overall length4
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
