Kennametal

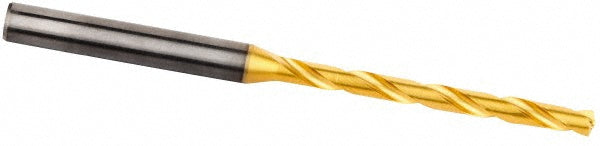

0.3976" Solid Carbide Drill Bit, Multilayer TiAlN, 140° point - Kennametal 4149734
MFR# 4149734Series B053A-CPG
$250.32List $321.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMultilayer TiAlN
Description
The Kennametal 4149734 is a 0.3976" Solid Carbide drill bit with a Multilayer TiAlN finish, 140° point. Series B053A-CPG.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in; -0.018 to 0.000 mm
Drill bit size0.3976
Drill point angle degrees140
Drill point length0.0679
Flute length3.7008
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeKC7325
Maximum drilling depth3.1102
Overall length5-2/4
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
