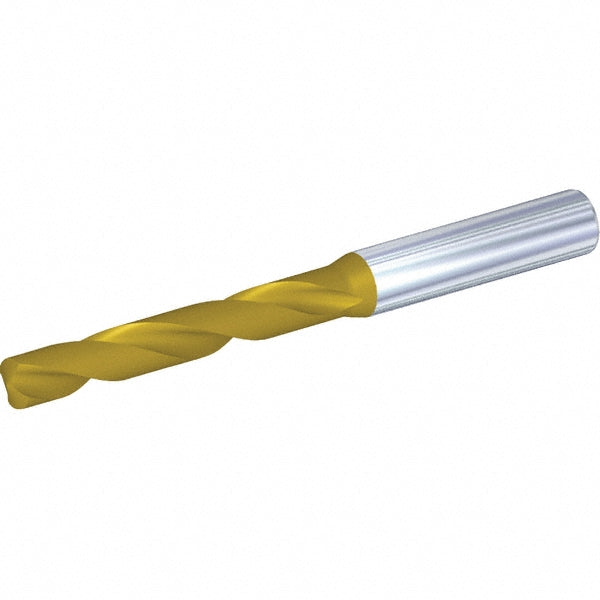

0.3937" Solid Carbide Screw Machine Drill Bit, TiN, 140° point - Kennametal 4150176

Kennametal

0.3937" Solid Carbide Screw Machine Drill Bit, TiN, 140° point - Kennametal 4150176

MFR# 4150176Series B041A

$83.96List $107.53 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Kennametal 4150176 is a 0.3937" Solid Carbide Screw Machine drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, high-temp alloy. Series B041A.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.015 to 0.000 mm
Drill bit size0.3937
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0672
Flute by diameter ratio3xD
Flute length1.8504
Flute typeRegular Spiral
Maximum drilling depth1.3780
Number of flutes2
Overall length3.5039
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
StandardsDIN 6535; DIN 6537
Tool materialSolid Carbide
Web configurationTapered
