Kennametal
0.0709" Solid Carbide Drill Bit, Multilayer TiAlN, 140° point - Kennametal 4151739
MFR# 4151739Series B053A-CPG
$166.54List $213.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMultilayer TiAlN
Description

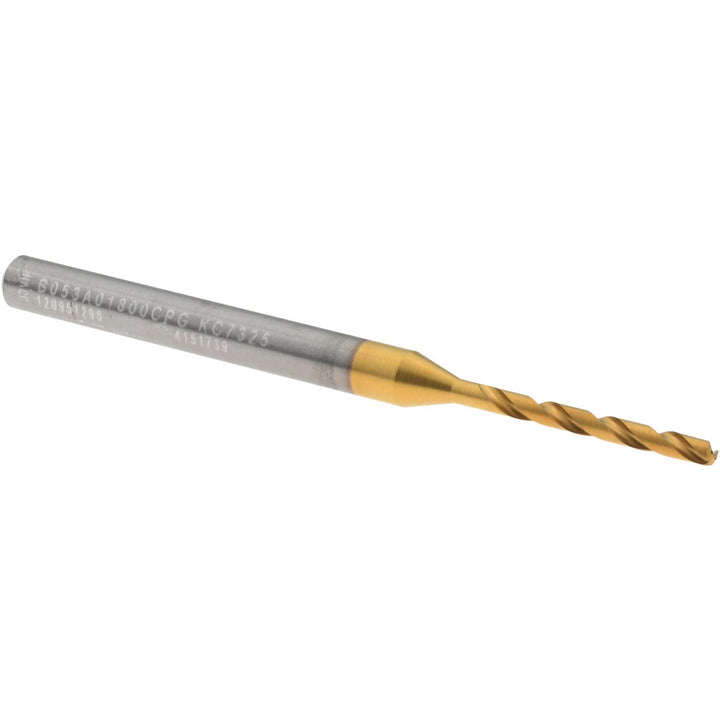

The Kennametal 4151739 is a 0.0709" Solid Carbide drill bit with a Multilayer TiAlN finish, 140° point. Series B053A-CPG.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.014 to 0.000 mm
Drill bit size0.0709
Drill point angle degrees140
Drill point length0.0110
Flute length0.7087
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeKC7325
Maximum drilling depth0.5906
Overall length2-1/4
Point typeStandard
Shank diameter0.1575
Shank length1.1024
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
