Kennametal

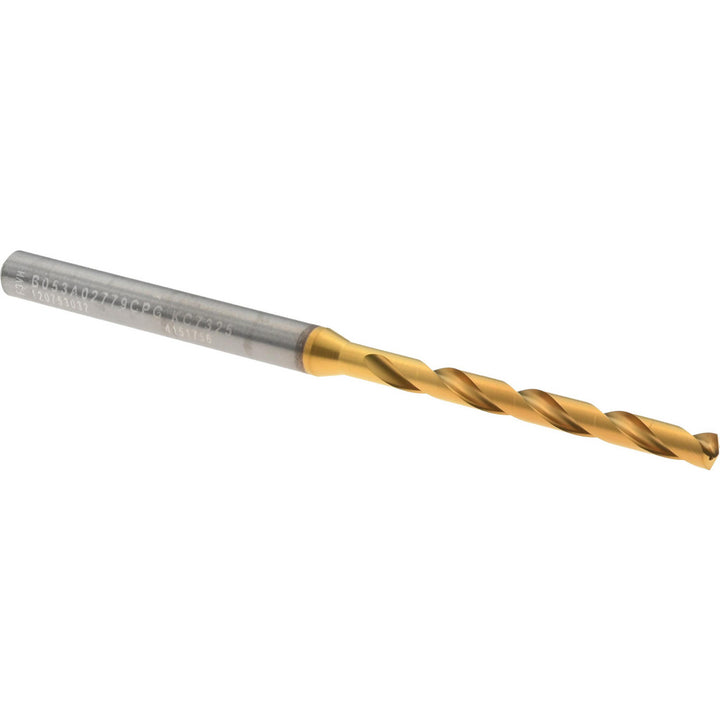

7/64" Solid Carbide Drill Bit, Multilayer, 140° point - Kennametal 4151756
MFR# 4151756Series B053A-CPG
$174.98List $213.59
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/64
CoatingMultilayer
Description
The Kennametal 4151756 is a 7/64" Solid Carbide drill bit with a Multilayer finish, 140° point. Series B053A-CPG.
Specifications
Coating finishMultilayer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in; -0.014 to 0.000 mm
Drill bit size in7/64
Drill point angle degrees140
Drill point length0.0176
Flute length1.1811
Flute length x diameter ratio8xD
Flute typeRegular Spiral
Material gradeKC7325
Maximum drilling depth0.9843
Overall length2-2/4
Point typeStandard
Shank diameter0.1575
Shank length1.1024
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
