Kennametal

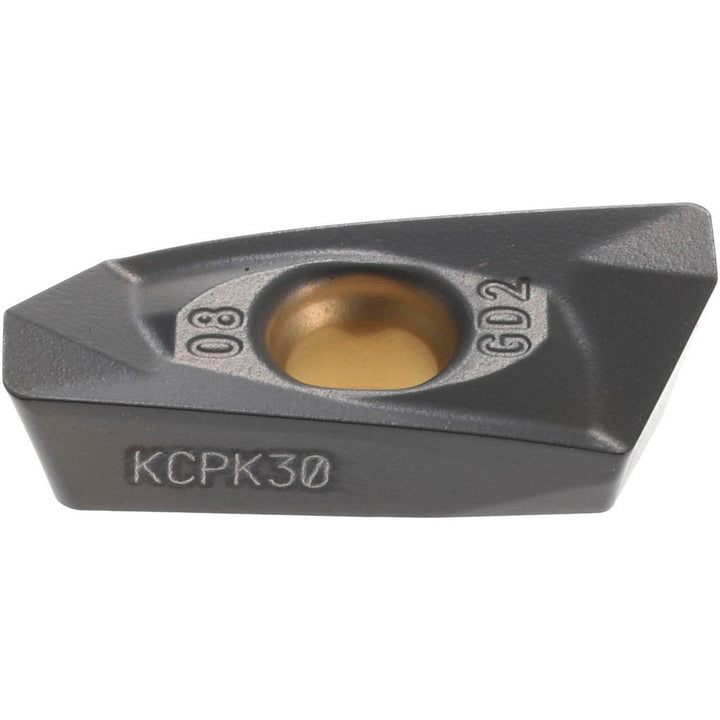

EDPT140408PDSRGD2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 4155725
MFR# 4155725ISO/ANSI# EDPT140408PDSRGD2Cat# EDPT140408PDSRGD2Series EDPT
$28.01List $34.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 4155725 is a EDPT140408PDSRGD2 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Chip breakerGD2
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned T-Land
Included angle degree70
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDPT
Iso codeEDPT140408PDSRGD2
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140408PDSRGD2
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Maximum depth of cut0.5512
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle15.00
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3295
