Kennametal

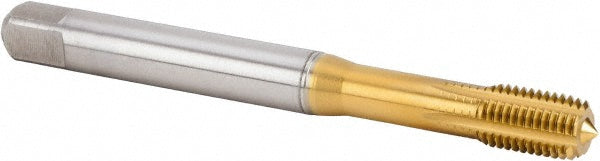

M10x1.25 Metric Fine High-Speed Steel-E-PM Tap, TiN - Kennametal 4158489
MFR# 4158489Series T622
$205.43List $263.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Kennametal 4158489 is a Metric Fine High-Speed Steel-E-PM tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material applicationSteel
Material application codeP
Material gradeKSP21
Oil grooves5
Overall length3.9370
Shank diameter0.3937
Square size0.2860
Tapping depth1.5354
Thread directionRight Hand
Thread length0.6299
Thread size (mm)M10x1.25
Thread standardMetric Fine
Trade nameBeyond
