Kennametal

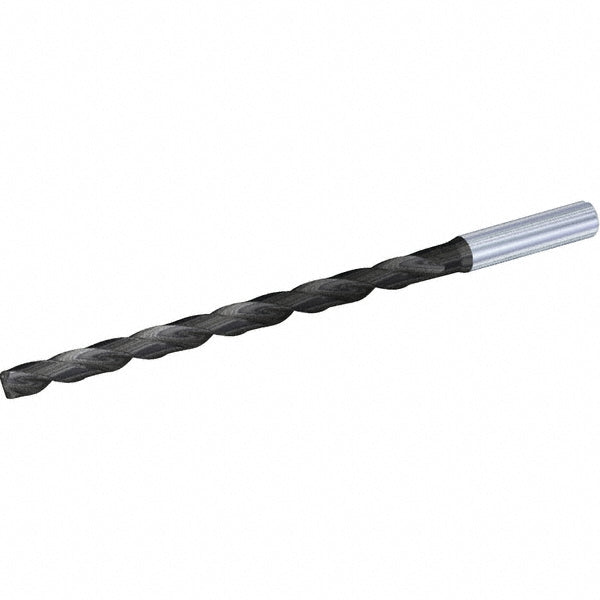

0.4724" Solid Carbide Drill Bit, Multilayer TiAlN, 135° point - Kennametal 4169297
MFR# 4169297Series B269-HP
$639.29List $819.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMultilayer TiAlN
Description
The Kennametal 4169297 is a 0.4724" Solid Carbide drill bit with a Multilayer TiAlN finish, 135° point. Series B269-HP.
Specifications
Coating finishMultilayer TiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm; 0.0003 to 0.0010 in
Drill bit size0.4724
Drill point angle135
Drill point length0.0880
Flute by diameter ratio12xD
Flute length6.6929
Flute typeSpiral
Maximum drilling depth5.6693
Number of flutes2
Overall length (mm)218.00
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
