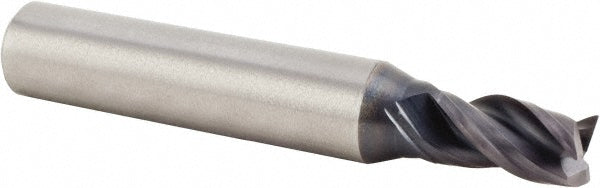

0.0938" 3-Flute Solid Carbide Single End Mill, AlTiN - Kennametal 4169352

MFR# 4169352Series UEDE

$30.59List $39.23 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4169352 is a 0.0938 3-flute Solid Carbide (KC643M) single end mill with a AlTiN finish for longer tool life. 5/32 length of cut. Series UEDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in5/32

Length typeStub

Material gradeKC643M

Mill diameter0.0938

Mill diameter frac in3/32

Mill diameter tolerance+0.000/-0.002 in

Number of flutes3

Shank diameter in1/4

Shank diameter tolerance+0.00000/-0.00031 in

Variable helixNo

Variable indexNo
