Kennametal

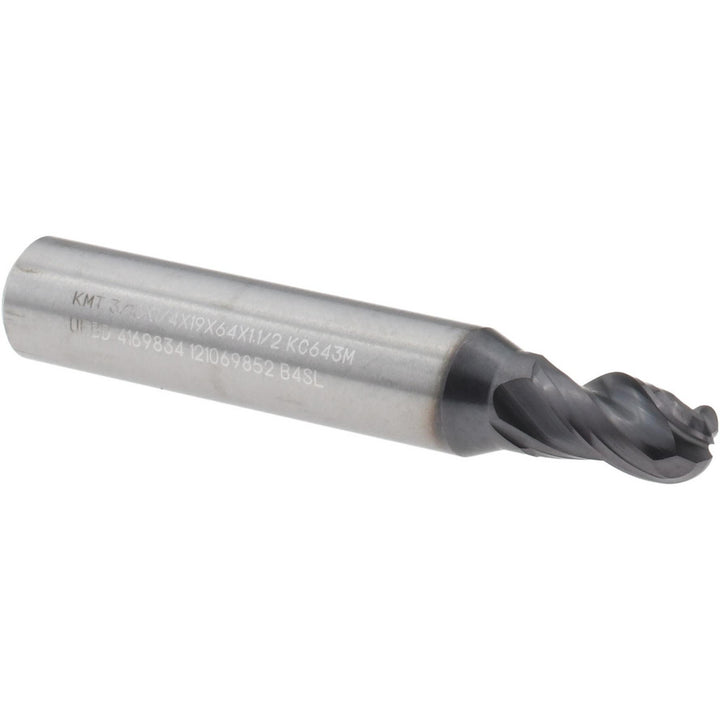

3/16" 3-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 4169834

MFR# 4169834Cat# UEBD0188J3ASeries GOmill UEBD

$35.26List $45.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4169834 is a 3/16 3-flute Solid Carbide (Fine Grain) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 19/64 length of cut, 1-1/2 overall length. Series GOmill UEBD.

Specifications

Additional informationEconomic Solid Carbide End Mill with Short Style Shanks, Saving Expensive Carbide. Not Recommended for Reconditioning. Extremely Stable Cutting Conditions Due to Short Design. Center Cutting for Plunging & Ramping Operations. Unequal Flute Spacing for Cha

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut in19/64

Length typeStub

Manufacturers catalog numberUEBD0188J3A

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.0938

Number of flutes3

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Reach length0.2969

Shank diameter in1/4

Shank diameter tolerance+0.0000/-0.0031 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
