Kennametal

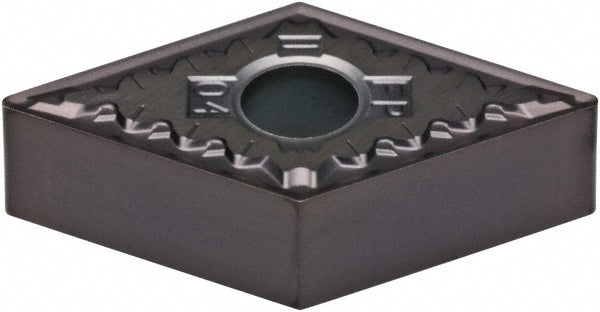

DNMG150412FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171829
MFR# 4171829ISO/ANSI# DNMG433FPSeries KENLOC
$33.09List $40.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171829 is a DNMG150412FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle55
Industry standard numberDNMG433FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412FP
Length range0.7000 - 10.0000
Manufacturers catalog number4171829
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.4065
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
