Kennametal

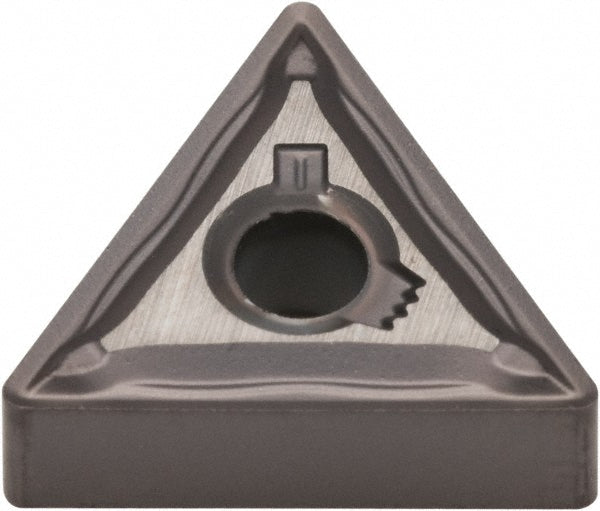

TNMG110304FF Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171837
MFR# 4171837ISO/ANSI# TNMG221FFSeries KENLOC
$16.95List $20.69
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171837 is a TNMG110304FF carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0890
Included angle60
Industry standard numberTNMG221FF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG110304FF
Length range0.4000 - 0.5000
Manufacturers catalog number4171837
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
