Kennametal

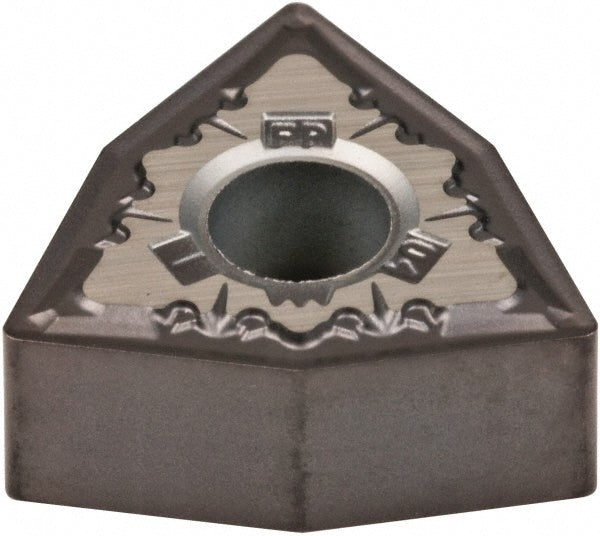

WNMG080404FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171849
MFR# 4171849ISO/ANSI# WNMG431FPSeries KENLOC
$21.19List $25.86
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4171849 is a WNMG080404FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberWNMG431FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404FP
Length range0.6500 - 0.7000
Manufacturers catalog number4171849
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.684
Wiper edgeNo
