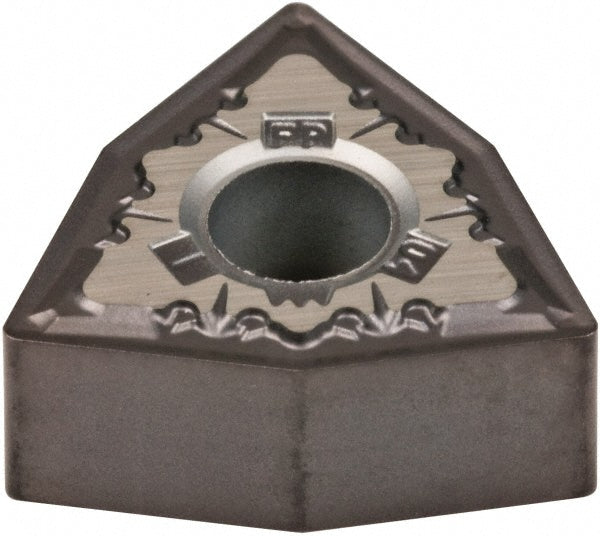

WNMG080408FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 4171851

MFR# 4171851ISO/ANSI# WNMG080402Series KENLOC

$25.82List $31.52 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4171851 is a WNMG080408FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerFP
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle80
Industry standard numberWNMG432FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408FP
Iso insert codeWNMG080402
Iso size code080402
Length range0.6500 - 0.7000
Manufacturers catalog number4171851
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
