Kennametal

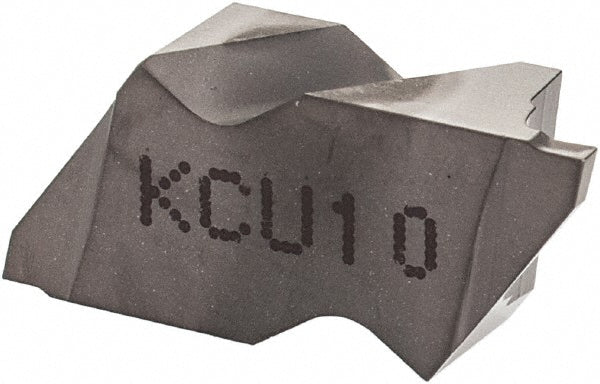

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175844
MFR# 4175844Series Top Notch
$34.78List $42.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175844 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0035
Cutting height0.2190
Cutting width0.0311
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2031
Insert styleNG
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Msc manufacturer numberNG2031R/LK
Multi use toolNo
Overall width0.151
