Kennametal

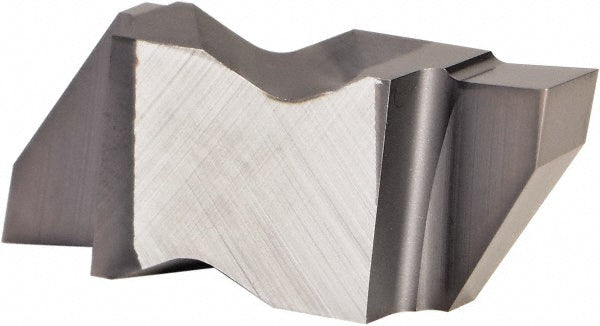

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175898
MFR# 4175898Series Top Notch
$37.52List $45.80
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175898 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2125
Insert styleNGP
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNGP2125R/L
Multi use toolNo
Overall width0.151
RakePositive
