Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175906
MFR# 4175906Series Top Notch
$35.67List $43.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

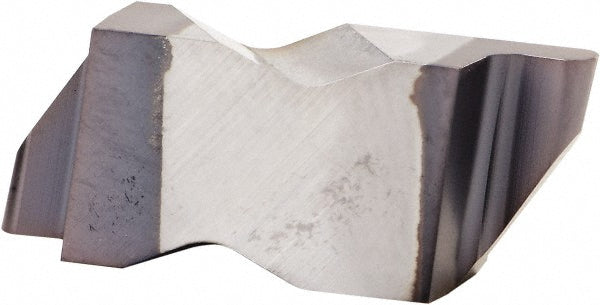

The Kennametal 4175906 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutting height0.2190
Cutting width0.0394
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2M050
Insert styleNR
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall width0.151
