Kennametal

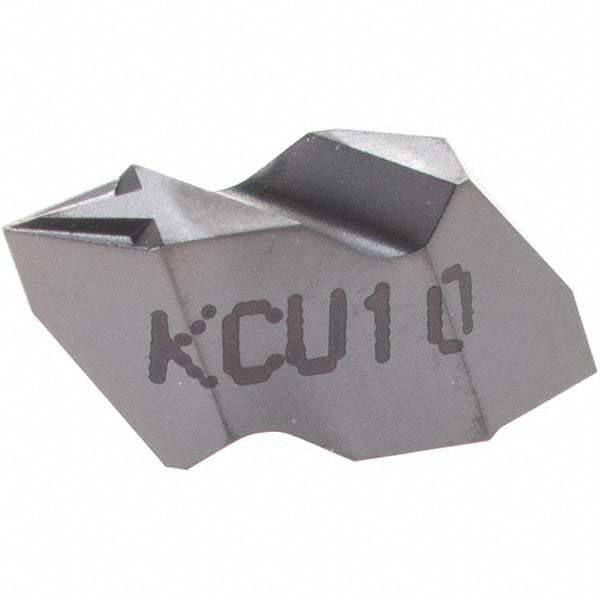

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175912
MFR# 4175912Series Top Notch
$33.15List $40.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175912 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
ChipbreakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0039
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNT
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKCU10
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0752
