Kennametal

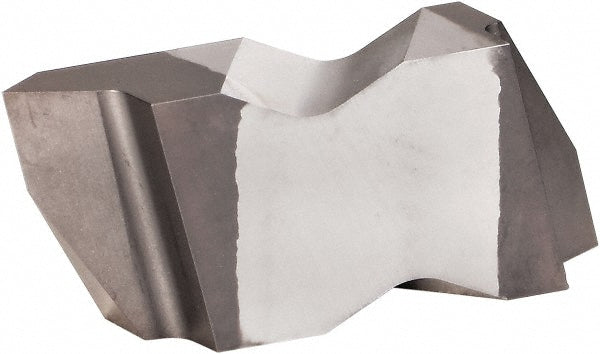

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175984
MFR# 4175984Series Top Notch
$32.52List $39.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4175984 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0031
External pitch0.60-2.50 mm; 10-44 TPI
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNTF
Internal pitch1.00 to 2.50 mm; 9 to 24 TPI
Manufacturer gradeKCU10
Thickness0.195
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
