Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4175989
MFR# 4175989Series Top Notch
$32.51List $39.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

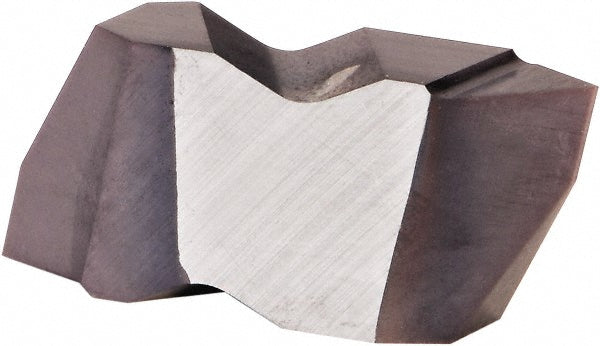

The Kennametal 4175989 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0065
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTP
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeKCU10
Thickness0.195
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
