Kennametal

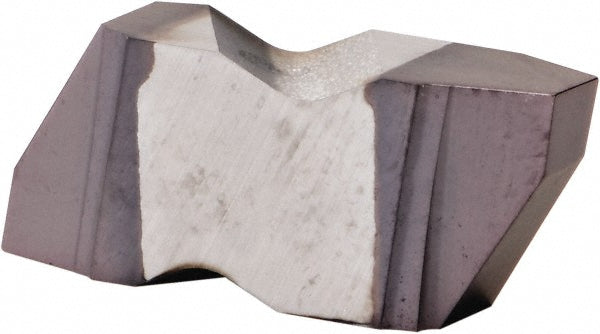

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176030
MFR# 4176030Series Top Notch
$35.41List $43.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176030 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Finish coatingAlTiN
Included angle29
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNAS
Internal pitch10 TPI
Manufacturer gradeKCU10
Thickness0.1949
Thread standardStub Acme
Thread typeInternal; External
Tip to top of insert0.1492
Width of cutting tip0.3700
