Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176035
MFR# 4176035Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

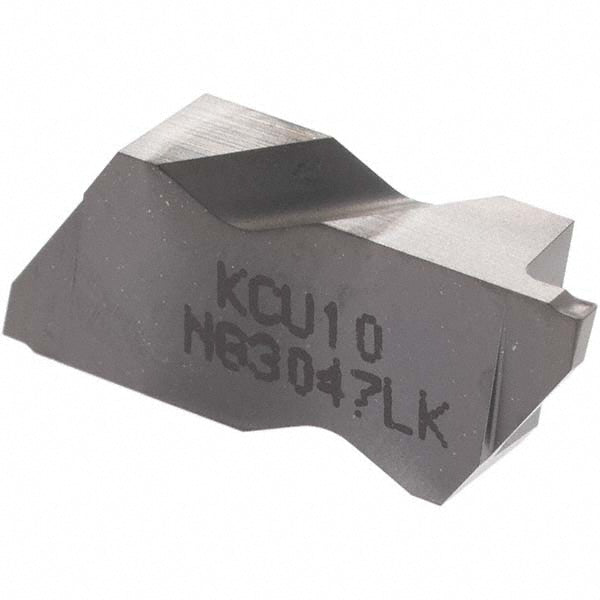

The Kennametal 4176035 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0469
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3047
Insert styleNG
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0752
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Msc manufacturer numberNG3047R/LK
Multi use toolNo
Overall width0.196
