Kennametal
Solid Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176037
MFR# 4176037Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialSolid Carbide
CoatingAlTiN
Description

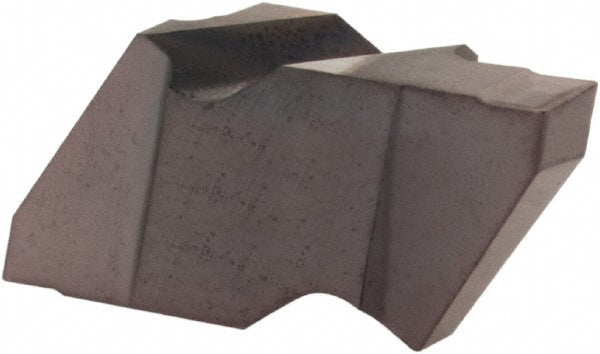

The Kennametal 4176037 is a solid carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerRK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0469
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3047
Insert styleNG
Lead angle0
Manufacturer gradeKCU10
Maximum depth of cut0.0752
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberNG3047R/LK
Multi use toolNo
RakeNeutral
Rake angle0.00
Single or double endDouble
