Kennametal

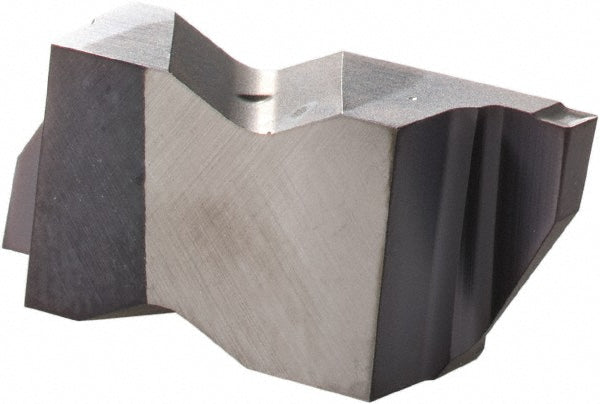

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176062
MFR# 4176062Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176062 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert size3125
Insert styleNG
Lead angle0
Manufacturer gradeKCU10
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeDecimal Inch
Msc manufacturer numberNG3125R/L
Multi use toolNo
RakeNeutral
Rake angle0
