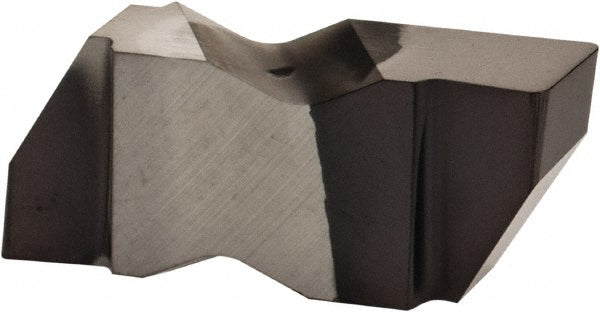

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176070
MFR# 4176070Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176070 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0225
Cutting height0.3440
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3189
Insert styleNG
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Msc manufacturer numberNG3189R/L
Multi use toolNo
Overall width0.196
