Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176096
MFR# 4176096Series Top Notch
$29.09List $35.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

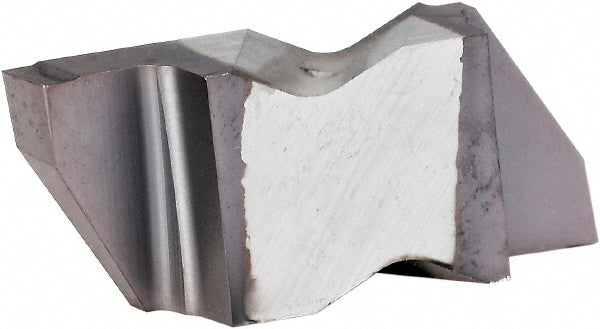

The Kennametal 4176096 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3441
Cutting width0.1081
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3M275
Insert styleNG
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
Overall width0.196
