Kennametal

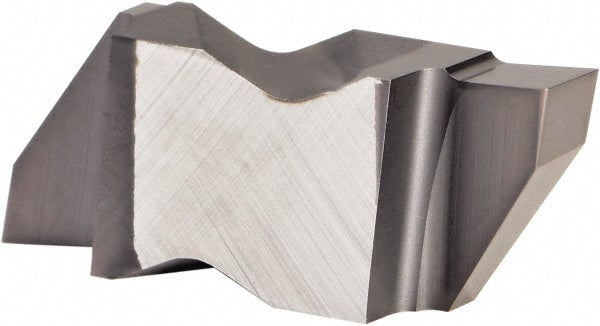

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176104
MFR# 4176104Series Top Notch
$52.09List $63.59
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176104 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0225
Cutting height0.4530
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4189
Insert styleNGP
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNGP4189R/L
Multi use toolNo
Overall width0.256
RakePositive
