Kennametal

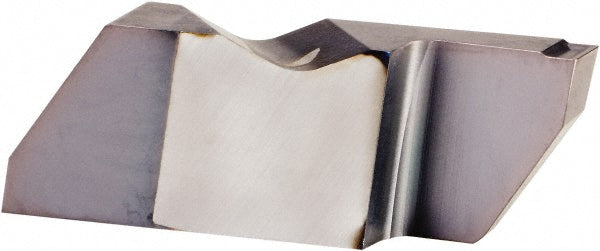

Solid Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176127
MFR# 4176127Series Top Notch
$28.35List $34.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4176127 is a solid carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0941
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3094
Insert styleNGD
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Msc manufacturer numberNGD3094R/LK
Multi use toolNo
Overall width0.1960
Single or double endSingle
