Kennametal
Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176178
MFR# 4176178Series Top Notch
$43.28List $52.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description

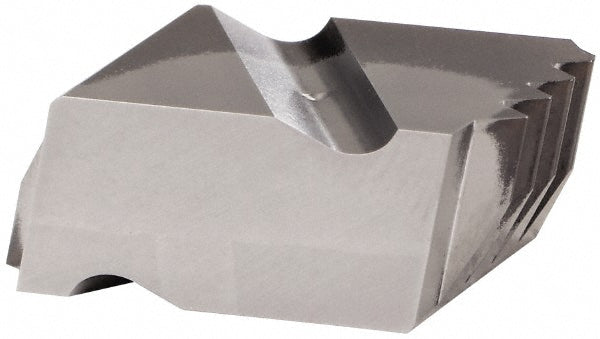

The Kennametal 4176178 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0039
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size8115
Insert styleNDC
Internal pitch11.5 TPI
Manufacturer gradeKCU10
Thickness0.438
Thread standardNPT
Thread typeInternal; External
