Kennametal

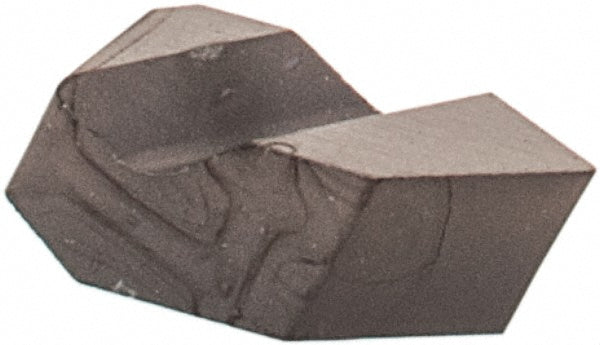

Carbide Insert, Grade KCU10, AlTiN - Kennametal 4176181
MFR# 4176181Series Top Notch
$21.98List $26.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4176181 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0031
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size1
Insert styleNT
Internal pitch1.00 to 2.00 mm; 12 to 24 TPI
Manufacturer gradeKCU10
Thickness0.1
Thread standardPartial Profile 60 Degree
Thread typeInternal
Tip to top of insert0.0429
