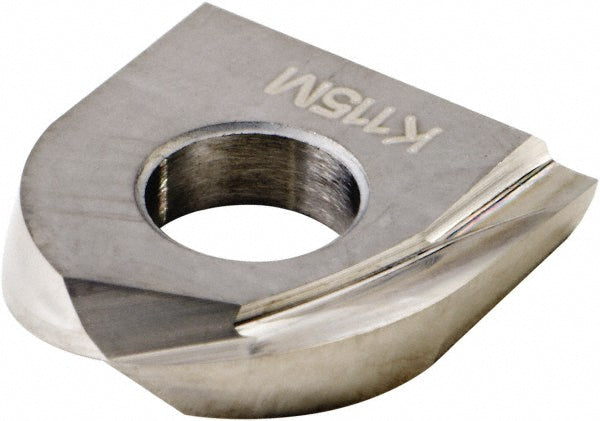

KDMB0750M0ERLD Solid Carbide Insert, Grade K115M - Kennametal 4177655

Kennametal

KDMB0750M0ERLD Solid Carbide Insert, Grade K115M - Kennametal 4177655

MFR# 4177655ISO/ANSI# KDMB0750M0ERLDCat# KDMB0750M0ERLDSeries KDMB

$115.14List $140.54 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeBall Nose
GradeK115M
MaterialSolid Carbide

Description

The Kennametal 4177655 is a KDMB0750M0ERLD solid carbide indexable insert, grade K115M. Suited for cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeKDMB0750M0ERLD
Chip breakerLD
Coating processUncoated
Corner radius in3/8
Cutter series compatibilityKDMB
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size07
Insert size code0750
Insert styleKDMB
Iso codeKDMB0750M0ERLD
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberKDMB0750M0ERLD
Manufacturer gradeK115M
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1181
Thickness range0.1000 to 0.1250
Width in3/4
