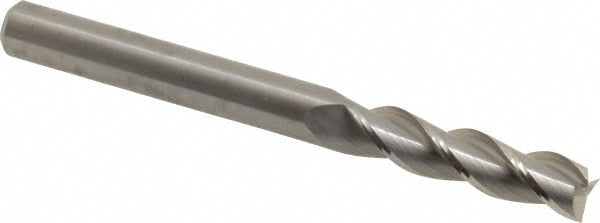

0.3125" 3-Flute Solid Carbide Single End Mill - Kennametal 5051941

Kennametal

0.3125" 3-Flute Solid Carbide Single End Mill - Kennametal 5051941

MFR# 5051941Series AADE

$117.80List $151.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Kennametal 5051941 is a 0.3125 3-flute Solid Carbide (Micrograin) single end mill. 1-1/4 length of cut. Series AADE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter0.3125
Mill diameter frac in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Iscar5/16" 3-Flute Solid Carbide Square End Mill, DLC - Iscar 3399016 $81.64 M.A. Ford.5/16" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13831257 $80.40 GWS5/16" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 314681 $88.80 Seco5/16" 3-Flute Solid Carbide Square End Mill - Seco 17003147 $81.09
