Kennametal

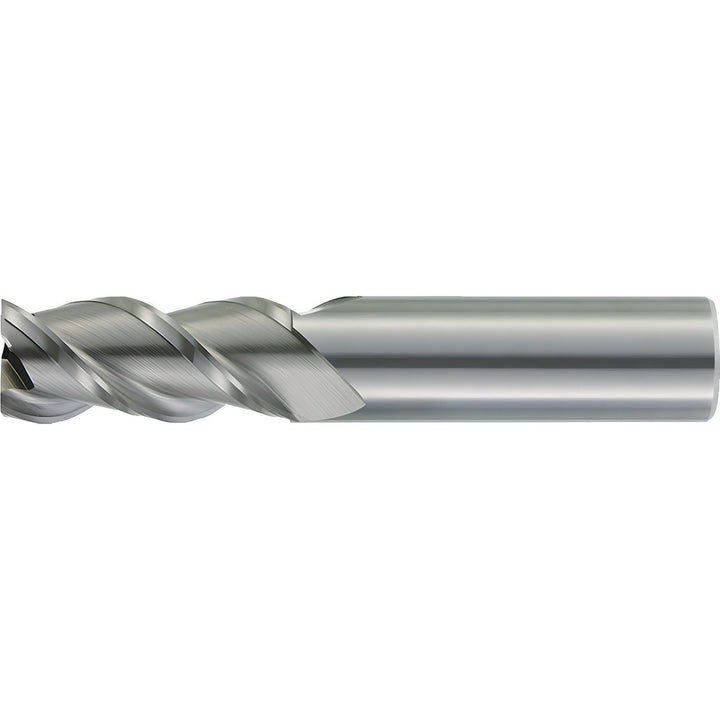

5/8" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 5052007

MFR# 5052007Cat# 4K2316076CSeries AADE

$309.35List $396.75 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 5052007 is a 5/8 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3 length of cut, 5-1/4 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores

Helix styleHigh

Length of cut in3

Length typeExtra Long

Manufacturers catalog number4K2316076C

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in5/8

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes3

Overall length in5-1/4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
